Container Dimensions

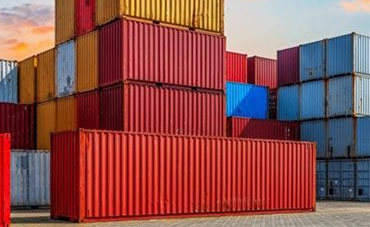

Standard containers

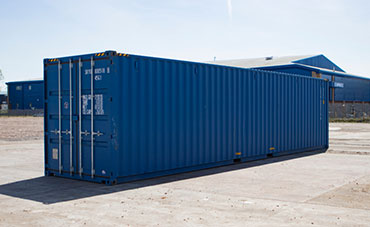

High-cube containers
Hard-top containers
APPROXIMATE DIMENSION & TYPES OF VARIOUS CONTAINERS DRY FREIGHT CONTAINERS
| Dry Freight Containers | Interior Dimensions | Door Opening | Max. Gross Weight | Tare Weight | Payload | Cubic Capacity |
|---|---|---|---|---|---|---|
| 20' dry freight containers 20' x 8' x 8'6" aluminium container |
L : 5919 mm W : 2340 mm H : 2380 mm L : 19'5" W : 7'8" H : 7'9½" |
W : 2286 mm H : 2278 mm W : 7'6" H : 7'5½" |
24000 kg 52910 lbs. |
1900 kg 4189 lbs. |
22100 kg 48721 lbs. |
33.0 cbm 1165 cu.ft |
| 20' x 8' x 8'6" steel container |
L : 5900 mm W : 2350 mm L : 19'4¼" W : 7'8½" H : 7'9¾" |
W : 2340 mm H : 2274 mm H : 2384 mm W : 7'8" H : 7'5¼" |
27000 kg 59524 lbs. |
2200 kg 4850 lbs. |
24800 kg 54674 lbs. |
33.1 cbm 1169 cu.ft |
| 40' dry freight containers 40' x 8' x 8'6" aluminium container |
L : 12045 mm W : 2329 mm L : 39'6¼" W : 7'7" H : 7'9½" |
W : 2289 mm H : 2278 mm H : 2379 mm W : 7'6" H : 7'5½" |
30480 kg 67196 lbs. |
3084 kg 6799 lbs. |
27396 kg 60397 lbs. |
67.3 cbm 2377 cu.ft |
| 40' x 8' x 8'6" steel container |
L : 12040 mm W : 2350 mm H : 2390 mm L : 39'6¼" W : 7'8½" H : 7'10" |
W : 2340 mm H : 2274 mm W : 7'8" H : 7'5¼" |
32500 kg 71650 lbs. |
3700 kg 8157 lbs. |
28800 kg 63492 lbs. |
67.6 cbm 2387 cu.ft |
| 40' high cube dry containers 40' x 8' x 9'6" aluminium container |
L : 12056 mm W : 2347 mm L : 39'6½" W : 7'8¼" H : 8'9½" |
W : 2340 mm H : 2585 mm H : 2684 mm W : 7'8" H : 8'5¾" |
32500 kg 71650 lbs. |
2900 kg 6393 lbs. |
29600 kg 65256 lbs. |
76.0 cbm 2684 cu.ft |
| 45' high cube dry containers 45' x 8' x 9'6" aluminium container |
L : 13582 mm W : 2347 mm H : 2690 mm L : 44'6½" W : 7'8¼" H : 8'10" |
W : 2340 mm H : 2585 mm W : 7'8" H : 8'5¾" |
32500 kg 71650 lbs. |
3900 kg 8598 lbs. |
28600 kg 63052 lbs. |
85.7 cbm 3026 cu.ft |
